Although it is not considered a major update, Microsoft (MS) recently released the latest iteration of its highly popular MS Office. To me, it appears most of the changes to this version (Microsoft Office 2010) are minor in nature and looks very similar to version 2007 – which WAS a major upgrade. That said, there are clearly things “under the hood” that have been revised and it is always fun to try and discover those new things.
I will not comment on the cost effectiveness of upgrading to MS Office 2010 except to say that if you are still using MS Office 2003, this is probably a worthwhile investment. But if you are responsible for ensuring that the documents coming from your organization meet accessibility requirements, MS Office 2010 might be an excellent investment.
Accessibility Checker
For the new version of MS Office (MSO), Microsoft has made accessibility a priority since one of the new features is the Accessibility Checker (MSO-AC) built into three of the core applications: Word 2010, Excel 2010, and PowerPoint 2010. According to the MS promo, the MSO-AC helps users create more accessible content “by identifying areas that might be challenging for users with disabilities to view or use, and providing a task pane to review those areas, users can fix potential problems with their content.” So far, my limited experience with the MSO-AC has been favorable and here is what I have learned so far:
1. To use MSO-AC, click on the File tab [or Alt-F], tab to, or click on Prepare for Sharing and then tab to or click on to Check Accessibility. The MSO-AC dialog panel will appear along the right side of your screen and show you Warnings, Errors or Inspection Results. The MSO-AC works dynamically (see 3 below) and will continue to run as you create or edit your document. To find the location of the error in your document, click or tab to the Warning statement and your screen will refresh showing the error location highlighted.
In the lower panel of the MSO-AC, there is Additional Information which explains the reason for the Warning/Error and step-by-step instructions on how to fix it.
In developing this tool, Microsoft apparently differentiated between accessibility issues that are minor and those considered critical. For example, including extra characters (Warning: Repeated Blank Characters) is considered minor – issuing a “Warning,” whereas the absence of ALT text for an inserted image is considered critical – issuing an “Error”
2. When creating new documents using the default version settings (not documents saved in pre-2007 versions of MSO), the MSO-AC seems to run smoothly as advertised. Documents created in older versions of Office, or saved in the pre-2007 format, may or may not work as expected. For example, testing some 2003 version Excel spreadsheets yielded an error statement: “Unable to run the Accessibility Checker – Cannot check the current file type for accessibility issues.” Attempts at saving the file in the current (2010) version had no effect on this. However, if the data is copied and pasted into a new Excel 2010 spreadsheet, the MSO-AC worked fine.
When using Word and PowerPoint, the MSO-AC worked essentially the same way (error when trying to check documents made by older versions), but sometimes simply saving the document in the new 2010 version allowed MSO-AC to work. Note to Microsoft: I found this to work inconsistently.

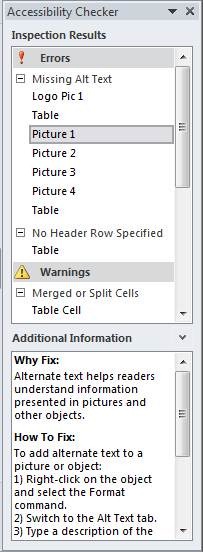

3. One of the best features of the MSO-AC is that once activated in the application it will run dynamically and continue to alert you to accessibility issues via the Accessibility Checker task pane (see image on this page) as you continue to create or edit your document. In other words, in PowerPoint, as you add features to a slide such as an image or chart, the MSO-AC immediately notes that the new object is lacking an ALT text description and provides directions and rationale on how to fix the accessibility error. And if you accidently – or purposely – remove an accessibility feature, MSO-AC will note this and provide a description of the issue, how to fix it and why it needs to be fixed. This dynamic feature allows the author to add the accessibility on the fly, as the document is being created. This feature alone has the potential of making the process of adding accessibility features faster and easier. The feature should be very helpful in enterprise settings, ultimately reducing the cost of training and accessibility auditing.
4. When adding ALT description text in MS-Office 2010, the procedure has been thankfully standardized across all applications. Right clicking with your mouse (Note: there are a series steps to accomplish this task using keystroke alternatives) brings up the Format Picture dialog box. Choose the “ALT Text” option at the bottom of the list and add the alternative text. Unfortunately, Microsoft has chosen to add an input box for adding a “Title” and/or a “Description” to this option. Even though the MSO-AC will “approve” an inserted image that has only a Title and not a Description, if you convert this document into another format (PDF or HTML) the Title will not pass as a valid description for accessibility purposes. In other words, for conversion purposes, the Description is more important than the Title. At this point, it is recommended that users add BOTH a Title and Description to their inserted image and make the content of the Title and Description the same.
Final Thoughts
One can only hope that the next version of MS Office will expand the Accessibility Checker to MS Publisher and all of the products within the suite. Hopefully MS will also include this feature in updates to its version of MS Office for the Mac OS.
As I continue to play with MSO-AC, I will no doubt find new and interesting features. I will post them as additions to this blog article or as separate entries. See the Resources below for links to what others have said about MS Office and accessibility.
Resources
Ten Tips for Accessible Documents – from Microsoft Accessibility – added 10/15/10
MS Tutorial on how to use the MSO-AC
WebAIM article about how to build accessible documents. Includes information about the new MSO-AC.
Another blog article from Microsoft on Office Web Applications accessibility
Media Access Australia blog about the new MSO-AC
YouTube Video on MS-Office 2010 Accessibility features
